UD Unidirectional Fabric

Application Overview

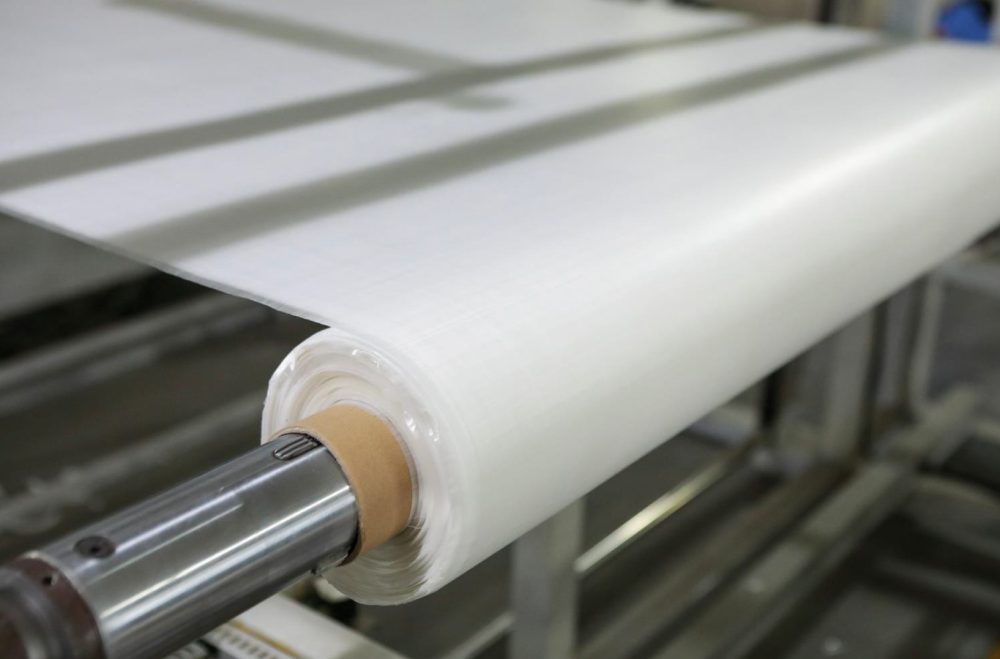

XINGI™ UD fabric is made from XINGI™ series UHMWPE fiber with a special binder through a proprietary process. It offers high strength, high modulus, soft texture and low specific gravity, and is also resistant to corrosion, acids and alkalis, sunlight, soaking and moisture. It is widely used in ballistic vests, ballistic armor plates, wind turbine blades, safety helmets, sports equipment and more.



Series
Series		 UD Areal Density (Customizable)
Density-UD		 Soft / Hard
Soft/Hard		 Protection Level
Protection level
J100 80GSM-2UD
160GSM-4UD
240GSM-6UD		 Soft GA2 ( 4.5kg/㎡, limit: 3.2kg/㎡ )
GA3 ( 5.5kg/㎡ )
NIJ Ⅲ A 9mm ( 5.5kg/㎡ or 4.2kg/㎡+0.5EVA, limit: 1.95kg/㎡ )
NIJ Ⅲ A .44 ( 5.8kg/㎡ or 4.5kg/㎡+0.5EVA )
J200 80GSM-2UD
160GSM-4UD
240GSM-6UD		 Soft GA2 ( 4.0kg/㎡, limit: 2.56kg/㎡ )
GA3 ( 5.5kg/㎡ )
NIJ Ⅲ A 9mm ( 5.2kg/㎡ or 3.6kg/㎡+0.5EVA, limit: 1.9kg/㎡ )
NIJ Ⅲ A .44 ( 5.5kg/㎡ or 4.2kg/㎡+0.5EVA )
J280 80GSM-2UD
160GSM-4UD
240GSM-6UD		 Soft GA2 ( 3.8kg/㎡ )
GA3 ( 5.2kg/㎡ )
NIJ Ⅲ A 9mm ( 5.0kg/㎡+0.5EVA )
NIJ Ⅲ A .44 ( 5.2kg/㎡+0.5EVA )
J300 80GSM-2UD
160GSM-4UD
240GSM-6UD		 Soft GA2 ( 3.5kg/㎡, limit: 2.2kg/㎡ )
GA3 ( 4.5kg/㎡ )
NIJ Ⅲ A 9mm ( 4.5kg/㎡+0.5EVA, limit: 1.45kg/㎡ )
NIJ Ⅲ A .44 ( 4.8kg/㎡+0.5EVA )
JX99 120GSM-2UD
240GSM-4UD		 Hard GA3 ( 5.8kg/㎡ )
NIJ Ⅲ A (5.8kg/㎡ )
NIJ Ⅲ AK47 (18.5kg/㎡ )
NIJ Ⅲ M80 (19.5kg/㎡ )
NIJ Ⅲ+ SS109 (30.0kg/㎡)
J100 120GSM-2UD
240GSM-4UD		 Hard NIJ Ⅲ A (5.8kg/㎡ )
NIJ Ⅲ AK47 (17.5kg/㎡ )
NIJ Ⅲ M80 (18.5kg/㎡ )
J200 120GSM-2UD
240GSM-4UD		 Hard NIJ Ⅲ A (5.5kg/㎡ )
NIJ Ⅲ AK47 (16.5kg/㎡ )
NIJ Ⅲ M80 (17.5kg/㎡ )
NIJ Ⅲ+ SS109 (25.0kg/㎡ )
J280 120GSM-2UD
240GSM-4UD		 Hard NIJ Ⅲ A (5.2kg/㎡ )
NIJ Ⅲ AK47 (15.5kg/㎡ )
NIJ Ⅲ M80 (16.5kg/㎡ )
NIJ Ⅲ+ SS109 (24.0kg/㎡ )
J300 120GSM-2UD
240GSM-4UD		 Hard NIJ Ⅲ A (4.8kg/㎡ )
NIJ Ⅲ AK47 (14.5kg/㎡ )
NIJ Ⅲ M80 (15.0kg/㎡+0.5EVA )
NIJ Ⅲ+ SS109 (22.5kg/㎡ )
J400 75GSM-2UD Hard GA3 (4.3kg/㎡ )
NIJ Ⅲ A (4.3kg/㎡ )
NIJ Ⅲ AK47 (13.0kg/㎡ )
NIJ Ⅲ M80 (14.0kg/㎡+0.5EVA )
NIJ Ⅲ+ SS109 (18.3kg/㎡ )

*The above UD parameters are for reference only. Please contact our sales team for details.
